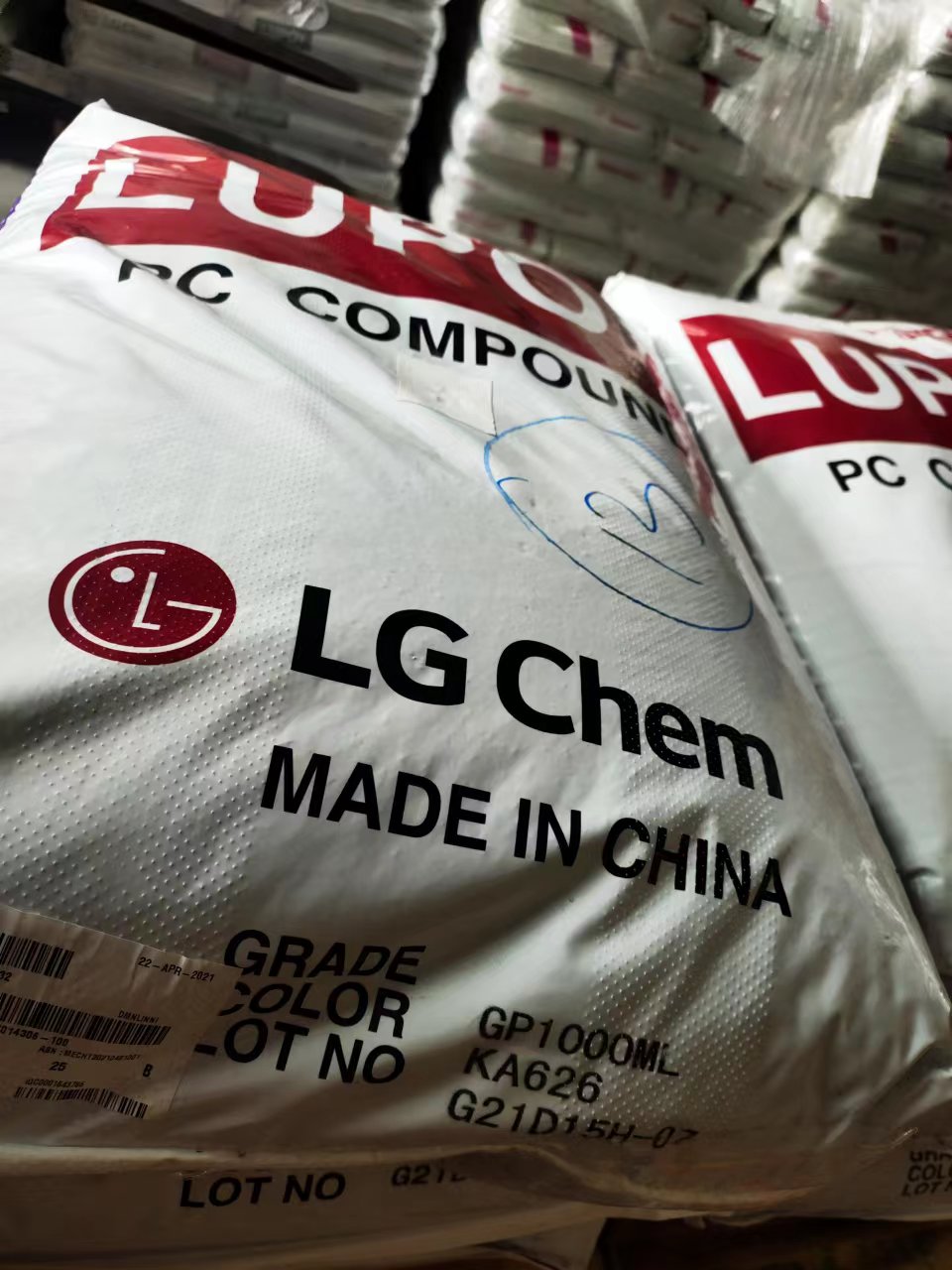

PC GP1000ML-KA626 LG GUANGZHOU
124
Unit Price:$3452 USD/MT
- Packaging Specification:
- 25 KG/PKG
- Supply Quantity:
- 10MT
- Delivery Terms:
- FOB
- Port of Loading:
- China Main Port
- Accepted Payment Methods:
- T/T
- Shipping:
- Negotiate supplier for shipping details
Supplier Information
ASIA PLASTIC EXCHANGE LIMITED
+86 755 2787 3515View
serv********View
For more detailed information including pricing, customization, and shipping, please contact supplier.
Material Description
Technical Data Sheet
Material Description
- Material Properties:--
- Application Areas:--
- Color:--
- Grade:Injection grade
Technical Data Sheet
Compare
| 物理性能 | Test Condition | Test Method | Test Result | Unit |
|---|---|---|---|---|
| 熔体质量流动速率 | 300°C/1.2 kg | ASTM D1238 | 15 | g/10 min |
| 收缩率 - 流动 | 23°C, 3.20 mm, 注塑 | ASTM D955 | 0.50 到 0.80 | % |
| 机械性能 | Test Condition | Test Method | Test Result | Unit |
|---|---|---|---|---|
| 洛氏硬度 | R 级, 23°C, 注塑 | ASTM D785 | 118 | |
| 拉伸强度 | 屈服, 23°C, 3.20 mm, 注塑 | ASTM D638 | 61.8 | Mpa |
| 伸长率 | 断裂, 23°C, 3.20 mm, 注塑 | ASTM D638 | 150 | % |
| 弯曲模量 | 23°C, 3.20 mm, 注塑 | ASTM D790 | 2260 | Mpa |
| 弯曲强度 | 23°C, 3.20 mm, 注塑 | ASTM D790 | 98.1 | Mpa |
| 热性能 | Test Condition | Test Method | Test Result | Unit |
|---|---|---|---|---|
| 热变形温度 | 1.8 MPa, 未退火, 6.40 mm, 注塑 | ASTM D648 | 132 | °C |
| 维卡软化点 | ASTM D15255 | 141 | °C | |
| RTI Elec | UL 746 | 130 | °C | |
| RTI Imp | UL 746 | 130 | °C | |
| RTI | UL 746 | 130 | °C |
| 电气性能 | Test Condition | Test Method | Test Result | Unit |
|---|---|---|---|---|
| 体积电阻率 | 23°C | ASTM D257 | 2.0E+17 | ohms·cm |
| 漏电起痕指数 | IEC 60112 | 250 | V |
| 注射 | Test Condition | Test Method | Test Result | Unit |
|---|---|---|---|---|
| 干燥温度 | 100 到 120 | °C | ||
| 干燥时间 | 3.0 到 5.0 | hr | ||
| 建议的最大水分含量 | 0.020 | % | ||
| 料筒后部温度 | 260 到 280 | °C | ||
| 料筒中部温度 | 280 到 300 | °C | ||
| 料筒前部温度 | 300 到 320 | °C | ||
| 射嘴温度 | 300 到 320 | °C | ||
| 加工（熔体）温度 | 300 到 320 | °C | ||
| 模具温度 | 80 到 120 | °C | ||
| 背压 | 0.981 到 3.92 | Mpa | ||
| 螺杆转速 | 40 到 70 | rpm |
| 可燃性 | Test Condition | Test Method | Test Result | Unit |
|---|---|---|---|---|
| UL 阻燃等级 | 1.5 mm | UL 94 | HB | |
| 3.2 mm | UL 94 | HB |
IMPORTANT NOTES: Plas.com collected the data in the data sheet from the material manufacturers. Plas.com makes the best effort to improve the accuracy of the data, but has no responsibility for the data. We strongly recommend verifying the validity of the data with the material manufacturers before making a final decision.
